Product Details


Pixhawk 4 Mini + Pixhawk4 GPS Module + PM06 V2 Power Management Board Holybro Autopilot Flight Controller STM32F765 For RC drone

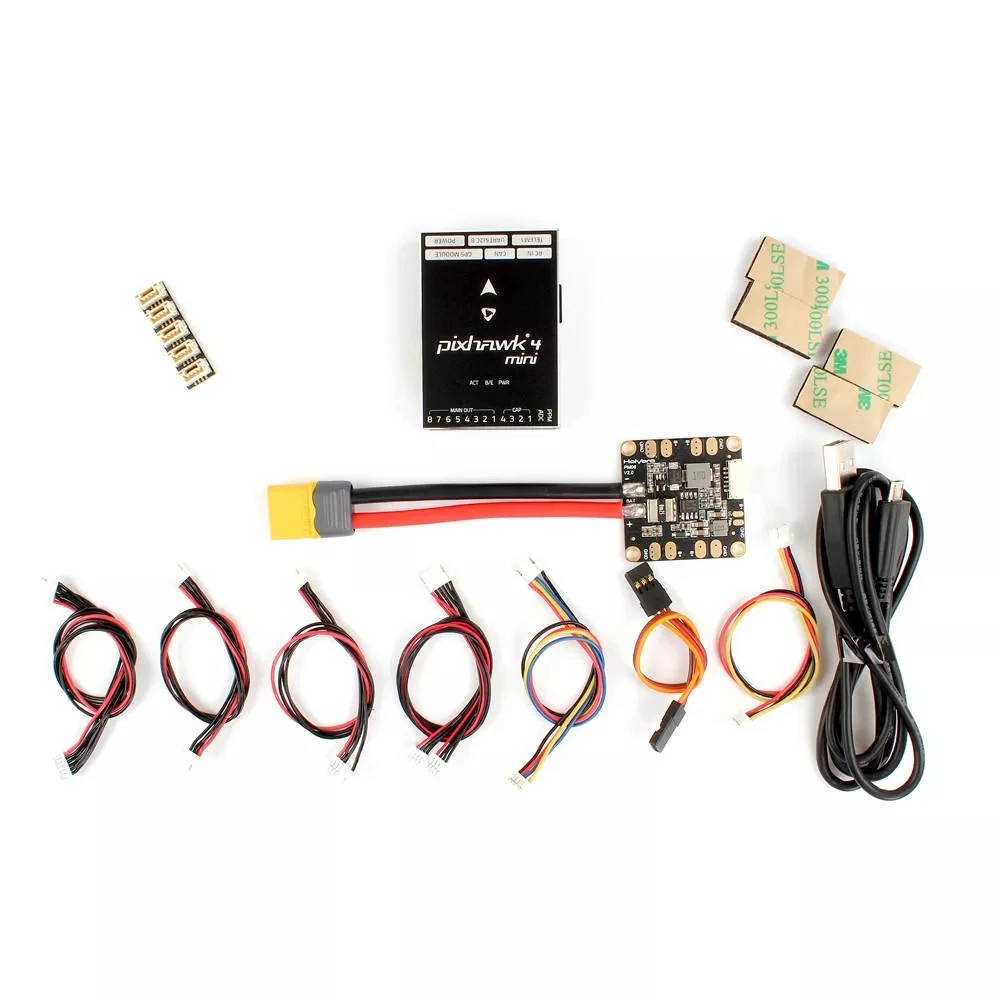

Package Included (With GPS)
Pixhawk4 mini * 1
Pixhawk4 GPS MODULE * 1
PM06 V2 Power Management Board
I2C splitter board * 1
6 to 6 pin cable (power) * 1
4 to 4 pin cable (CAN) * 1
6 to 4 pin cable (data) * 1
6 to 4 pin and 4 pin “Y” cable * 1
6 to 6 pin cable (debug) * 1
PPM / SBUS out cable * 1
XSR receiver cable * 1
DSMX receiver cable * 1
SBUS receiver cable * 1
USB cable * 1
Mount ‘X’type folding pedestal * 1
70mm & 140mm carbon rod stand off * 2
Foam Set * 1
Pixhawk4 mini Quick Start Guide * 1

Package included (Without GPS)
Pixhawk4 mini * 1
PM06 V2 Power Management Board * 1
I2C splitter board * 1
6 to 6 pin cable (power) * 1
4 to 4 pin cable (CAN) * 1
6 to 4 pin cable (data) * 1
6 to 4 pin and 4 pin “Y” cable * 1
6 to 6 pin cable (debug) * 1
PPM / SBUS out cable * 1
XSR receiver cable * 1
DSMX receiver cable * 1
SBUS receiver cable * 1
USB cable * 1
Foam Set * 1
Pixhawk4 mini Quick Start Guide * 1

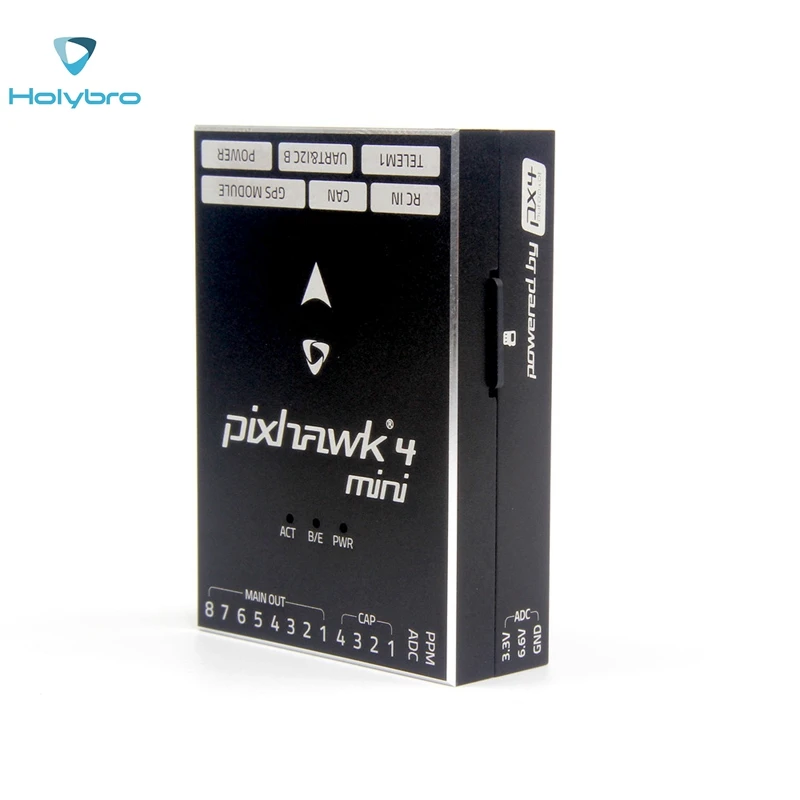

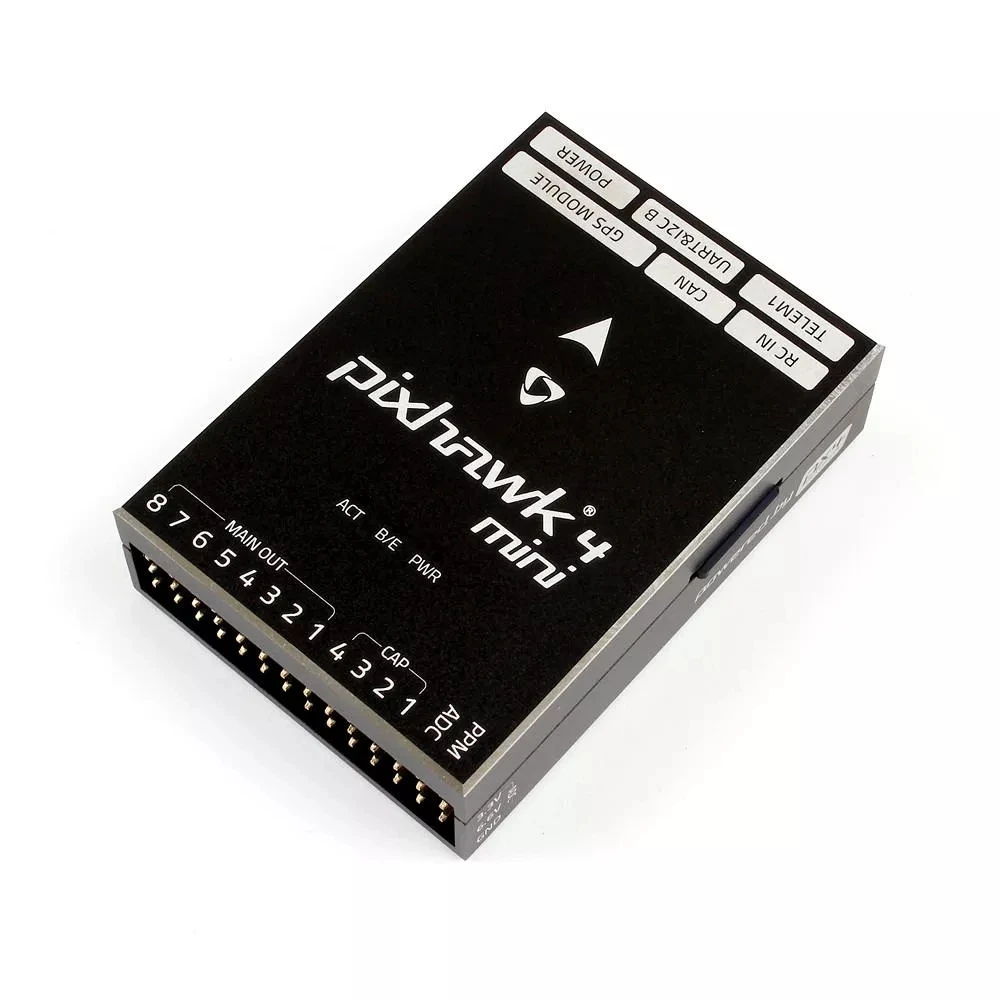

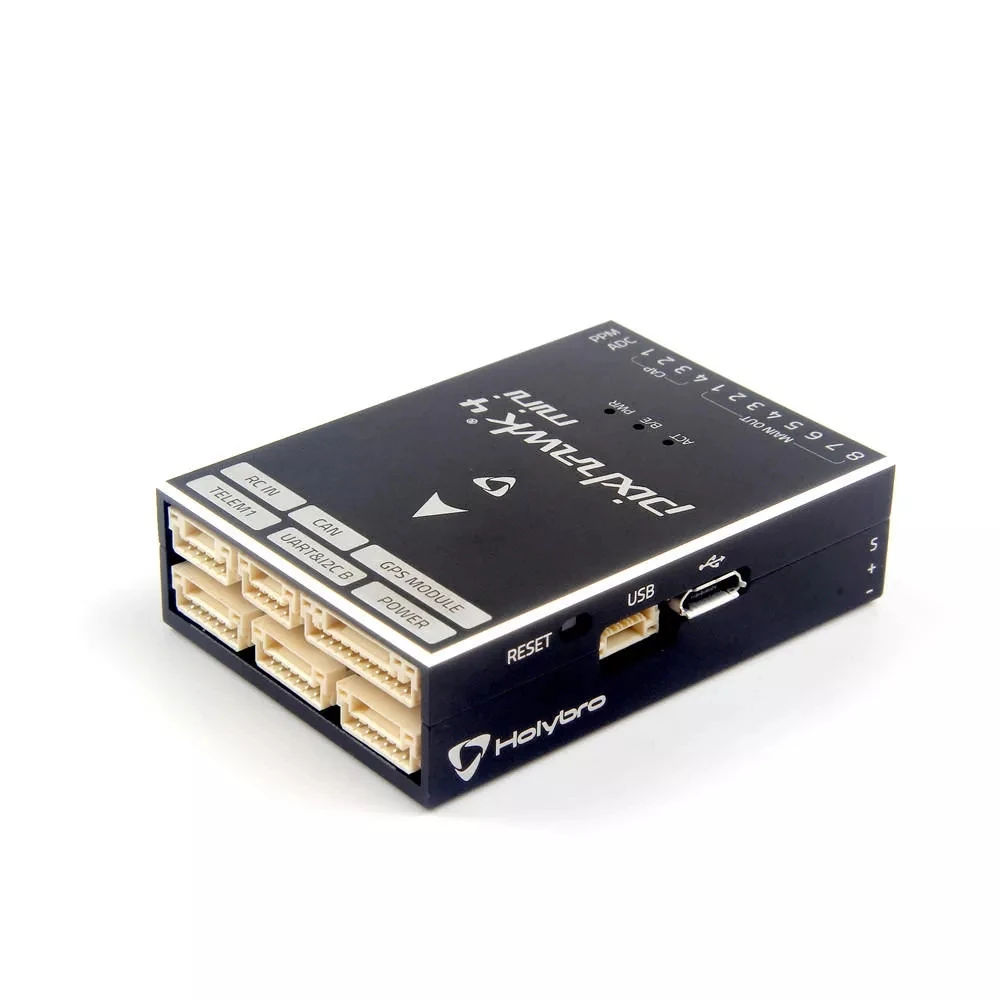

Pixhawk 4 Mini
The Pixhawk® 4 Mini autopilot is designed for engineers and builders looking to unlock the power of Pixhawk 4 but are working with smaller drones. Pixhawk 4 Mini takes the FMU processor and memory resources from the Pixhawk 4 while providing interfaces that are usually unused. This allows the Pixhawk 4 Mini to become small enough to drone into a 250mm racer.

Pixhawk 4 Mini was designed and developed in collaboration with Holybro® and Auterion®. It is based on the Pixhawk FMUv5 design standard and is optimized to run PX4 flight control software.
Pixhawk4 mini firmware version: 1.8.0 dev

Quick summary
Main FMU processor: STM32F765
32-bit Arm Cortex-M7, 216 MHz, 2 MB memory, 512KB RAM
On-board sensors:
Accel / Gyro: ICM-20689
Accel / Gyro: BMI055
Magnetometer: IST8310
Barometer: MS5611
GPS: ublox Neo-M8N GPS / GLONASS receiver; Integrated magnetometer IST8310
interfaces:
8 PWM outputs
4 dedicated PWM / capture inputs on FMU
Dedicated R / C input for CPPM
Dedicated R / C input for Spektrum / DSM and S. Bus with analog / PWM RSSI input
3 general purpose serial ports
2 I2C ports
3 SPI buses
1 CANBuses for CAN ESC
Analog inputs for voltage / current of the battery
2 additional analog input
Power System:
Power supply input: 4.75-5.5V
USB power input: 4.75-5.25V
Servo rail input: 0-24V
Max current measurement: 120A
Weight and dimensions:
Dimensions: 38x55x15.5mm
Other properties:
Operating temperature: -40 to 85
